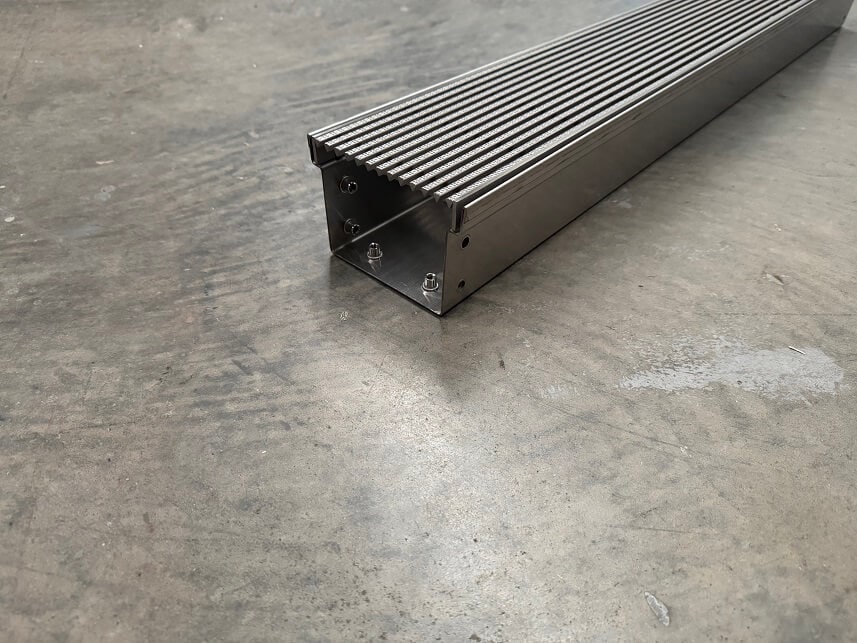

135 mm Wide , 90 mm Deep Anti Slip Light Drain

Premium Stainless Steel 316 Modular Drainage System

Our drainage system Designed with modular assembly, this system offers a variety of accessories, allowing for seamless customization to fit different installation scenarios. Whether for residential, commercial, or industrial applications, the flexible design makes it easy to adapt to your specific needs.

Drains up to 3 meters long can be seamlessly connected to create a continuous and uniform drainage system. The precise design ensures a perfect fit between sections, maintaining structural integrity and aesthetic appeal while preventing water leakage or misalignment.

All material are crafted from high-quality 316 marine stainless steel, ensuring exceptional durability and resistance to corrosion. Stainless steel 316 has better corrosion resistance than 304 and is more suitable for installation in swimming pools and beach scenes.

Fully welded high load bearing wedge wire insert – 5 mm wedge wires and 5 mm gaps for a uniform look. Cover grate up to 3 meters long can be seamlessly connected together.

Sleek brushed stainless steel wedge wire grates provide a modern architectural look. Perfect architectural installation for premium landscape drainage or pool drainage

1.2 mm thick stainless steel for heavy duty durability
90 mm deep tray for efficient water drainage, the minimum waterway were no less than 1,050 m2.
Simple modular components and assembly allows for DIY installation

Premium Specifications

Load Bearing Rate : Class A for pedestrian

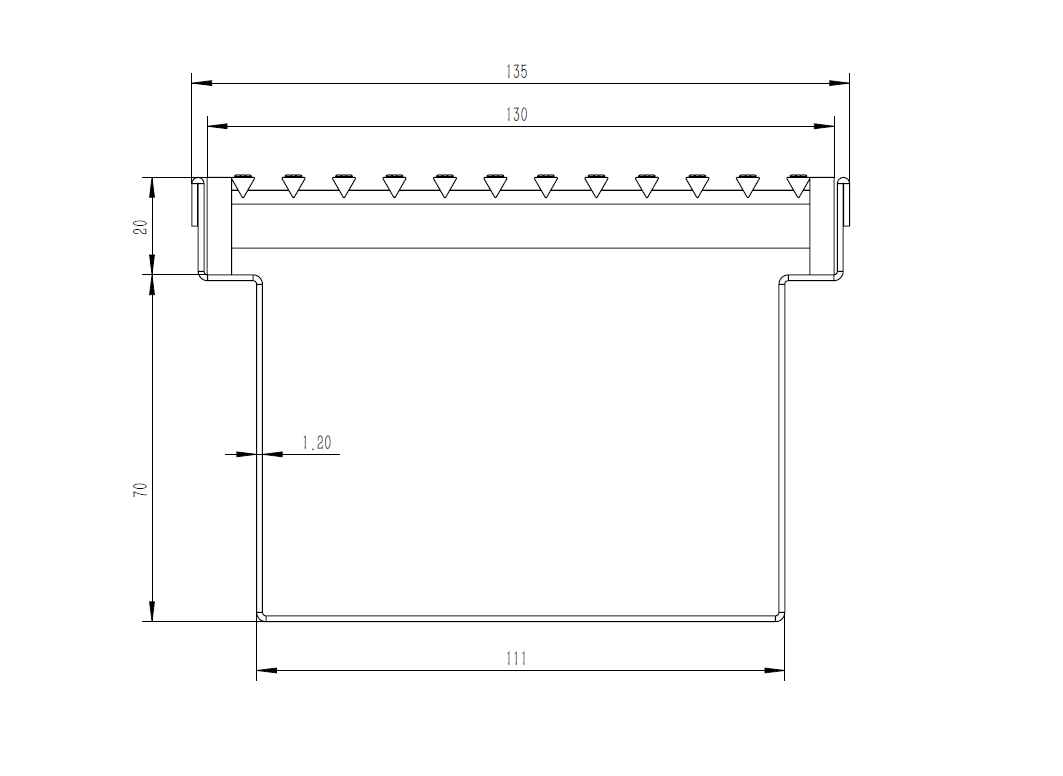

Channel Size: 135 mm wide. 90 mm deep, 1.2 mm thick stainless steel
Cover Grate Size: 130 mm wide, 20 mm height  ( Fit Everhard EasyDrain Plastic Channel in Bunnings )
                                 5 mm profile with 5 mm gaps , 12 mm high support bar
                                 5 mm x 20 mm side bar
Grate design: Anti- Slip 5 Star Wedge Wire design. Also known as “Anti Slip Heel Guard” design as it is suitable for high heels
Material : Full 316 L (low carbon) marine grade stainless steel
Accessoies : Joiner,
                       End cap and
                       Moveable outlet ( 75 mm or 89 mm diameter available ).
                       Fixing Bolt and hook supply free.
Warranty: Lifetime warranty against manufacturing defects
