100 mm Wide , 25 mm Deep Drainage channel

Premium Stainless Steel 316 Modular Drainage System

Our drainage system Designed with modular assembly, this system offers a variety of accessories, allowing for seamless customization to fit different installation scenarios. Whether for residential, commercial, or industrial applications, the flexible design makes it easy to adapt to your specific needs.

Drains up to 3 meters long can be seamlessly connected to create a continuous and uniform drainage system. The precise design ensures a perfect fit between sections, maintaining structural integrity and aesthetic appeal while preventing water leakage or misalignment.

All material are crafted from high-quality 316 marine stainless steel, ensuring exceptional durability and resistance to corrosion. Stainless steel 316 has better corrosion resistance than 304 and is more suitable for installation in swimming pools and beach scenes.

Each component is expertly welded for superior strength, ensuring a long lifespan and reliable performance. The sturdy construction prevents deformation and guarantees stability over time. With its premium materials and well-engineered design, our drainage system is the perfect solution for those seeking efficiency, durability, and adaptability in one product.

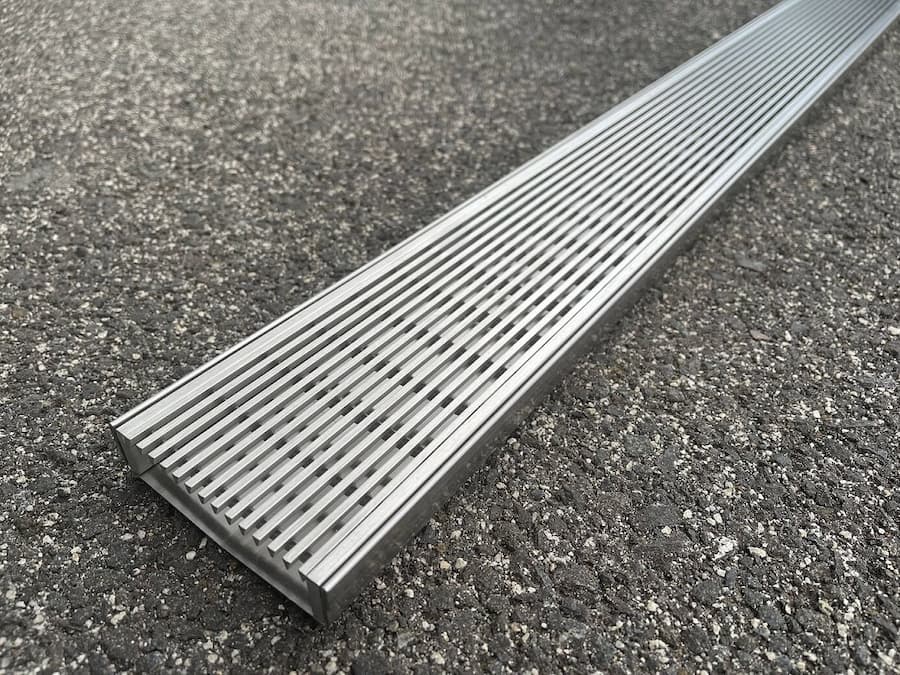

Sleek brushed stainless steel wedge wire grates provide a modern architectural look. Perfect architectural installation for premium landscape drainage or pool drainage

1.2 mm thick stainless steel for heavy duty durability
25 mm deep tray for efficient water drainage, the minimum waterway were no less than 1,750 mm2.
Simple modular components and assembly allows for DIY installation

Premium Specifications

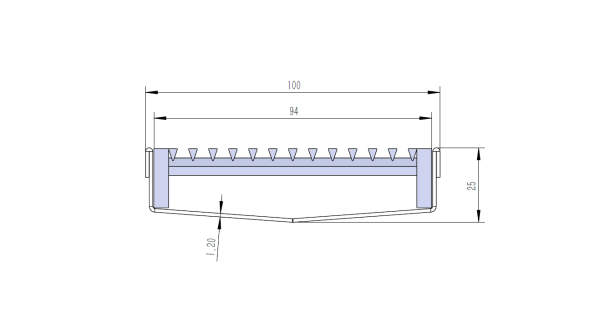

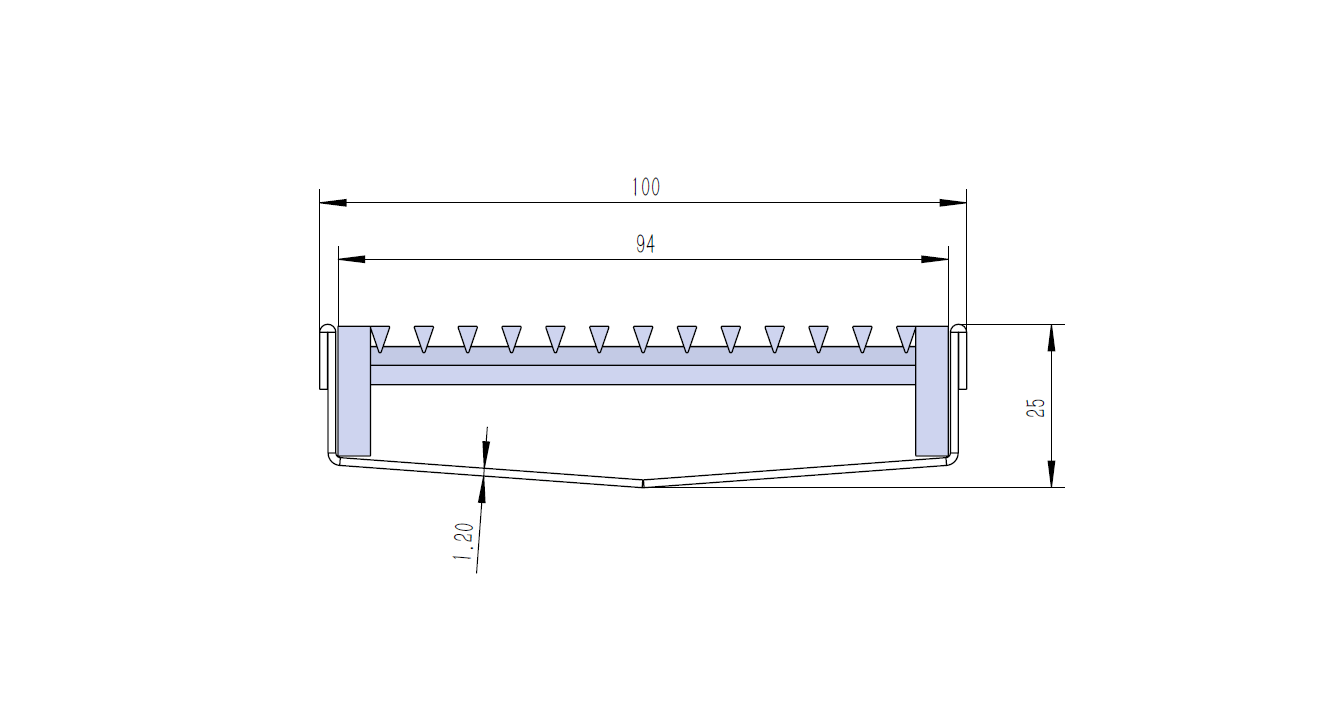

Channel Size: 100 mm wide. 25 mm deep, 1.2 mm thick stainless steel
Cover Grate Size: 94 mm wide, 20 mm height
                                      3 mm profile with 4 mm gaps , 6 mm high support bar
                                      5 mm x 20 mm side bar
Grate design: Wedge Wire design. Also known as “Heel Guard” design as it is suitable for high heels
Material : Full 316 L (low carbon) marine grade stainless steel

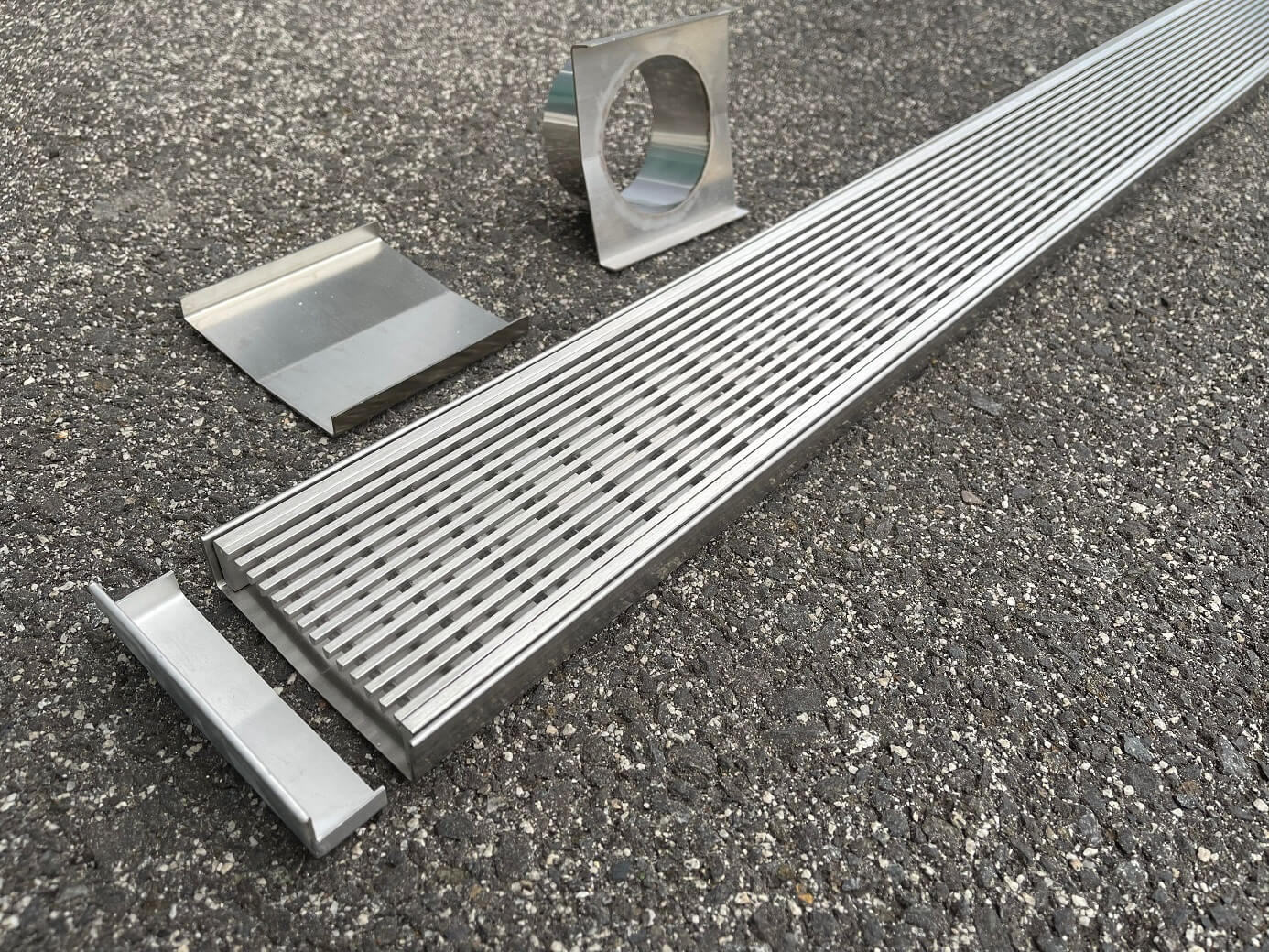

Accessories : Joiner,
                            End cap and
                            Moveable outlet (40 mm, 50 mm and 75 mm diameter available).
                            Fixing Bolt and hook supply free.
Warranty: Lifetime warranty against manufacturing defects
