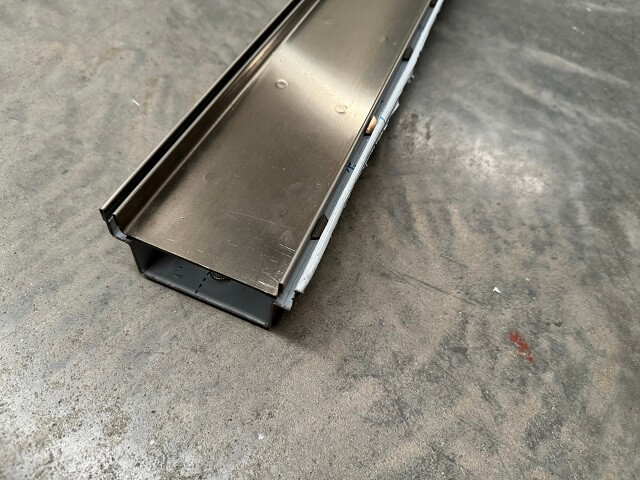

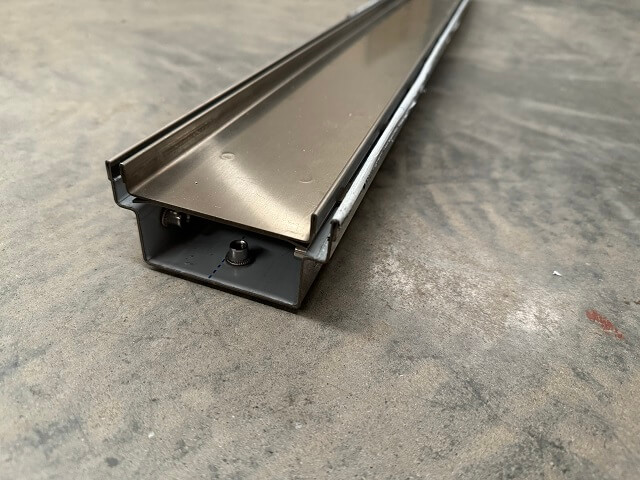

100 mm Wide , 50 mm Deep Tile Insert Drain

Premium Stainless Steel 316 Modular Drainage System

Our drainage system Designed with modular assembly, this system offers a variety of accessories, allowing for seamless customization to fit different installation scenarios. Whether for residential, commercial, or industrial applications, the flexible design makes it easy to adapt to your specific needs.

Drains up to 3 meters long can be seamlessly connected to create a continuous and uniform drainage system. The precise design ensures a perfect fit between sections, maintaining structural integrity and aesthetic appeal while preventing water leakage or misalignment.

All material are crafted from high-quality 316 marine stainless steel, ensuring exceptional durability and resistance to corrosion. Stainless steel 316 has better corrosion resistance than 304 and is more suitable for installation in swimming pools and beach scenes.

1.2 mm thick stainless steel for heavy duty durability
50 mm deep tray for efficient water drainage.
Simple modular components and assembly allows for DIY installation

Premium Specifications

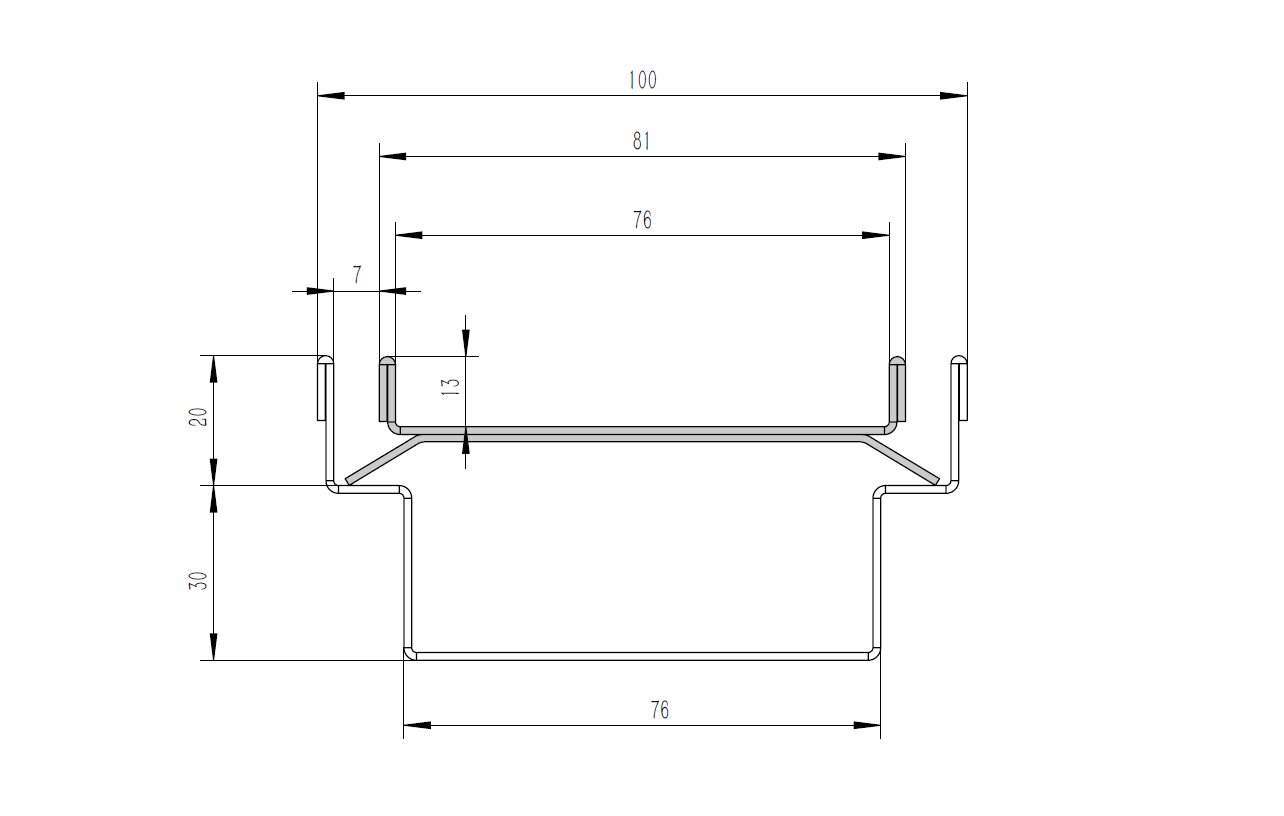

Channel Size:  100 mm wide. 50 mm deep, 1.2 mm thick stainless steel
Tile Insert Size:  76 mm inner wide, 13 mm height, Fit 8 – 12 mm tile
Grate design:  Tile Insert design. insert cover has Full support .
Material :  Full 316 L (low carbon) marine grade stainless steel

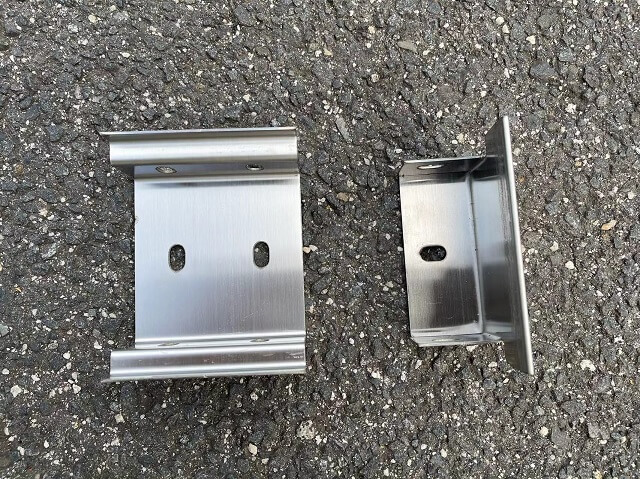

Accessories :  Joiner,
                             End cap and
                             Moveable outlet ( 50 mm and 75 mm diameter available  ).
                             Stainless steel hook supply free.
